Maxon

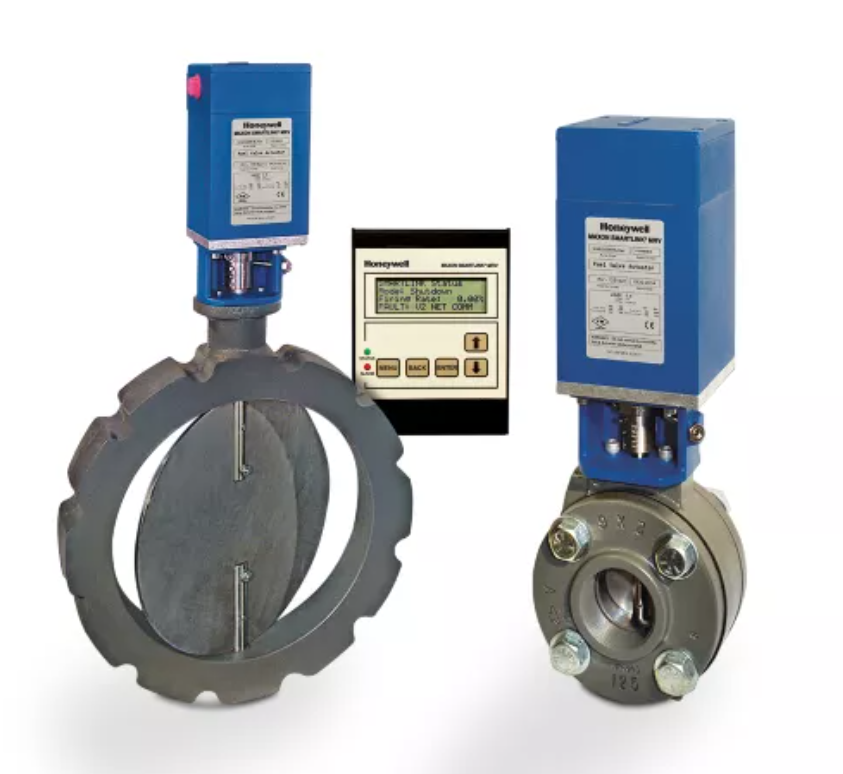

Smartlink MRV

  • Precise and repeatable flow control optimizes fuel efficiency, enables accurate temperature control and lowers burner emissions.
  • SMARTLINK MRV is an electronic parallel positioning system for air/fuel ratio control; for use in industrial applications providing a high degree of precision, repeatability and durability.
  • Synchronous control of up to four valves with conventional signal from the user`s process controller.
  • Direct coupled valve and actuator assembly includes weatherproof housing with integrated position feedback and heavy duty planetary gearheads for reliable, long life operation.
  • Compact, robust design mounts in any orientation.
  • Each SMARTLINK Valve is adjustable to 0.1 degrees accuracy.
  • UL and CE approved electronics and software for air-fuel ratio control
  • Stores a 22 point user-customized profile for each valve.
  • Factory Mutual (FM) approved as non-incendive for Hazardous Locations Class I, Division 2, Groups A, B, C and D, T4 Temperature code; NEMA 4X standard actuator
  • Maintenance-free operation; no lubrication required. No valve packing to adjust.
  • Electronic passcode protection eliminates valve profile tampering.
  • Simple set-up; no PC required.
  • Standby, purge and light off positions can be defined independent of valve profiles.



Download BrochureTECHRITE-MAXON-MAXON-SMARTLINK-MRV-180528121839.PDF [PDF]
