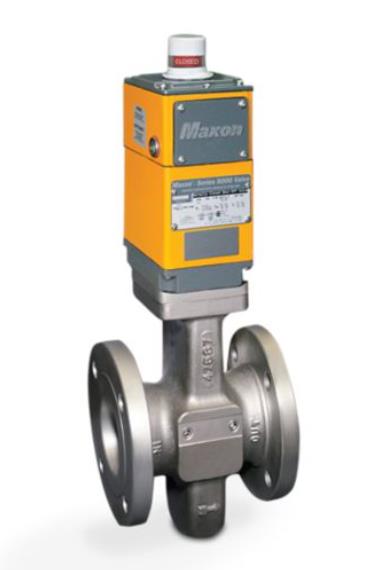

Maxon 8000 Series Electro-Pneumatic Gas Shutoff & Vent Valves (AGA, SIL3 & IECEx approved)
-
Pneumatically actuated valves with powerful closing spring for reliable operation
-
Max Operating Pressure: 1380 kPa and 1760 kPa
-
Size: DN 20 - DN 150
-
Compact design with integral solenoid, quick exhaust and position switches that protects components, simplifies piping and minimizes space requirements
-
AGA, Factory Mutual, CSA and CE approved safety shut-off and vent valves
-
Hazardous Location approved: Intrinsically Safe and Non-Incendive constructions available
-
Full assessment to IEC 61508 as SIL 3 capable
-
Large top mounted 360-degree open-shut visual position indication, configurable in red/green or yellow/black color schemes
-
Cast iron, carbon steel, low temperature carbon steel and stainless steel body assemblies with internal trim options to handle general purpose or corrosive gases; oxygen compatibility, NACE compliance, and fire safe conformance to API 6FA
-
Ambient temperature ranges of -50 to 60 degrees celcius; Gas temperature range of -50 to 100 degrees celcius
-
Actuator assemblies are field-replaceable and available in 120VAC 50/60 Hz, 240VAC 50/60 Hz, and 24VDC (with low power option), rated for NEMA 4, NEMA 4X and IP65
-
AGA Certificate 7432
